型号 |
螺栓规格 |
无负荷转速 |
全长 |
净重 |
方轴规格 |
进气口螺纹 |
软管尺寸 |
平均消耗空气 |
|
mm |
in |
rpm |
mm |
in |
kg |
lb |
mm |
in |
Rc or NPT |
mm |
in |
m3/min |
ft3/min |

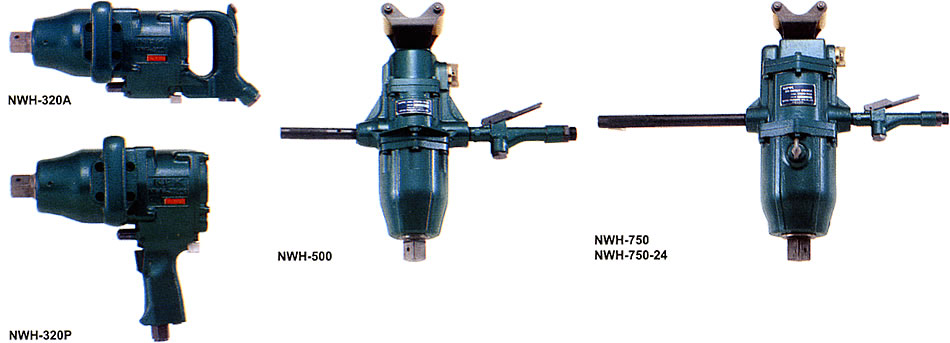

| NWH-320A |
39 |
1 1/2 |
4,000 |
368 |
14 1/2 |
9.1 |
20 |
25.4 |
1 |
3/8 |
12.7 |
1/2 |
0.5 |
17.7 |
| NWH-320P |
39 |
1 1/2 |
4,000 |
274 |
10 25/32 |
9.0 |
19.8 |
25.4 |
1 |
3/8 |
12.7 |
1/2 |
0.5 |
17.7 |
| NWH-500 |
52 |
2 |
3,500 |
563 |
22 5/32 |
29.0 |
63.8 |
38.1 |
1 1/2 |
G1 |
19.0 |
3/4 |
1.2 |
42.4 |
| NWH-750 |
75 |
3 |
2,200 |
634 |
24 31/32 |
52.5 |
115.5 |
44.5 |
1 3/4 |
G1 |
19.0 |
3/4 |
1.5 |
53 |
| NWH-750-24 |
75 |
3 |
2,200 |
646 |
25 7/16 |
52.6 |
115.7 |
63.5 |
2 1/2 |
G1 |
19.0 |
3/4 |
1.5 |
53 |

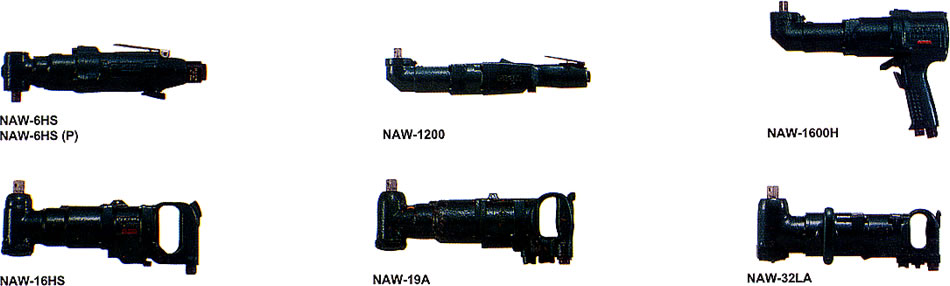

| NAW-6HS |
6 |
1/4 |
8,000 |
238 |
9 3/8 |
1.5 |
3.3 |
9.5 |
3/8 |
1/4 |
6.3 |
1/4 |
0.25 |
8.8 |
| NAW-6HS(P) |
6 |
1/4 |
8,000 |
238 |
9 3/8 |
1.5 |
3.3 |
9.5 |
3/8 |
1/4 |
6.3 |
1/4 |
0.25 |
8.8 |
| NAW-16HS |
16 |
5/8 |
3,500 |
396 |
15 19/32 |
9.6 |
21.1 |
19.05 |
3/4 |
3/8 |
12.7 |
1/2 |
0.45 |
15.9 |
| NAW-19A |
18 |
11/16 |
4,000 |
413 |
16 1/4 |
10.6 |
23.3 |
19.05 |
3/4 |
3/8 |
12.7 |
1/2 |
0.50 |
17.7 |
| NAW-32LA |
22 |
7/8 |
3,500 |
441 |
17 3/8 |
18.0 |
39.6 |
25.4 |
1 |
1/2 |
12.7 |
1/2 |
0.85 |
30 |
| NAW-1200 |
12 |
1/2 |
6,500 |
364 |
14 11/32 |
3.0 |
6.6 |
12.7 |
1/2 |
1/4 |
6.3 |
1/4 |
0.1 |
3.5 |
| NAW-1600H |
14 |
9/16 |
5,000 |
280 |
11 1/32 |
3.6 |
7.9 |
12.7 |
1/2 |
1/4 |
6.3 |
1/4 |
0.15 |
5.3 |

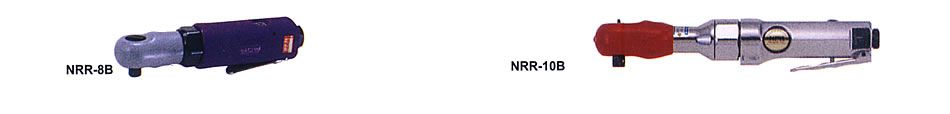

| NRR-8B |
8 |
5/16 |
200 |
178 |
7 |
0.54 |
1.2 |
9.5 |
3/8 |
1/4 |
6.3 |
1/4 |
0.1 |
3.5 |
| NRR-10B |
10 |
3/8 |
160 |
261 |
10 9/32 |
1.1 |
2.4 |
9.5 |
3/8 |
1/4 |
6.3 |
1/4 |
0.1 |
3.5 |
|
