型号 |
螺栓规格 |
扭力调整范围（参考） |
无负荷
转速 |
全长 |
净重 |
方轴规格 |
进气口螺纹 |
软管尺寸 |
平均消耗空气 |
mm |
in |
N・M |
kgf・cm |
ft・lb |
rpm |
mm |
in |
kg |
lb |
mm |
in |
Rc or NPT |
mm |
in |
m3/min |
ft3/min |

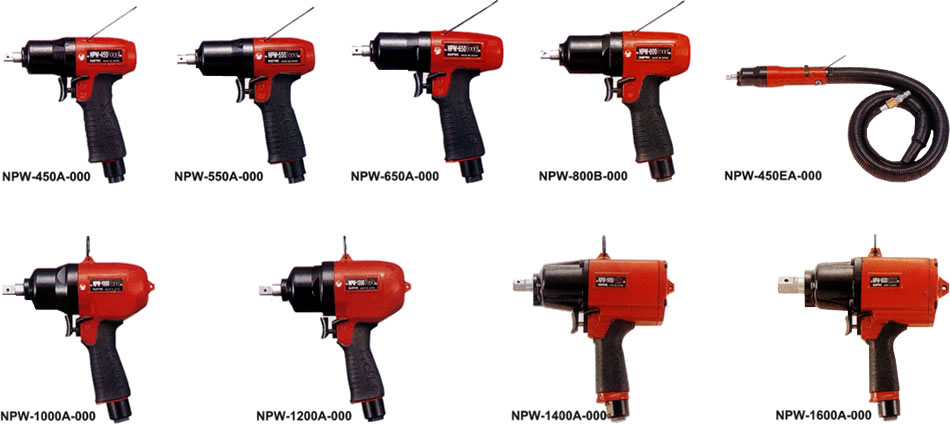

| NPW-450EA-000 |
6 |
1/4 |
20.6-34.3 |
210-350 |
15-25 |
6,000 |
242 |
9 1/2 |
0.88 |
1.94 |
9.5 |
3/8 |
1/4 |
6.3 |
1/4 |
0.23 |
8.1 |
| NPW-350-000 |
5 |
1/5 |
9.8-15.7 |
100-160 |
7-12 |
6,000 |
238 |
9 1/2 |
0.9 |
2.05 |
9.5 |
3/8 |
1/4 |
6.3 |
1/4 |
0.23 |
8.1 |
| NPW-450A-000 |
6 |
1/4 |
24.5-42.1 |
250-430 |
18-31 |
6,500 |
154 |
6 1/16 |
0.93 |
2.05 |
9.5 |
3/8 |
1/4 |
6.3 |
1/4 |
0.3 |
10.6 |
| NPW-550A-000 |
8 |
5/16 |
26.5-51.9 |
270-530 |
20-38 |
6,500 |
159 |
6 1/4 |
1.0 |
2.20 |
9.5 |
3/8 |
1/4 |
9.5 |
3/8 |
0.35 |
12.4 |
| NPW-650A-000 |
8～10 |
5/16-3/8 |
44.1-63.7 |
450-650 |
33-47 |
5,500 |
172 |
6 25/32 |
1.06 |
2.34 |
9.5 |
3/8 |
1/4 |
9.5 |
3/8 |
0.45 |
15.9 |
| NPW-800B-000 |
10 |
3/8 |
63.7-93.1 |
650-950 |
47-69 |
5,300 |
178 |
7 |
1.45 |
3.20 |
9.5 |
3/8 |
1/4 |
9.5 |
3/8 |
0.5 |
17.7 |
| NPW-1000A-000 |
12 |
1/2 |
70.0-110 |
714-1200 |
52-81 |
5,300 |
192 |
7 9/16 |
1.9 |
4.19 |
12.7 |
1/2 |
1/4 |
9.5 |
3/8 |
0.55 |
19.4 |
| NPW-1200A-000 |
12～14 |
1/2-9/16 |
90.2-137 |
920-1400 |
67-101 |
4,500 |
195 |
7 11/16 |
2.3 |
5.07 |
12.7 |
1/2 |
1/4 |
9.5 |
3/8 |
0.6 |
21.2 |
| NPW-1400A-000 |
14 |
9/16 |
118-167 |
1200-1700 |
87-123 |
3,500 |
218 |
8 9/16 |
2.8 |
6.17 |
12.7 |
1/2 |
1/4 |
9.5 |
3/8 |
0.8 |
28.3 |
| NPW-1600A-000 |
16 |
5/8 |
129-210 |
1320-2140 |
95-155 |
3,000 |
240 |
9 7/16 |
3.6 |
7.94 |
19.05 |
3/4 |
1/4 |
9.5 |
3/8 |
0.9 |
31.8 |
|
